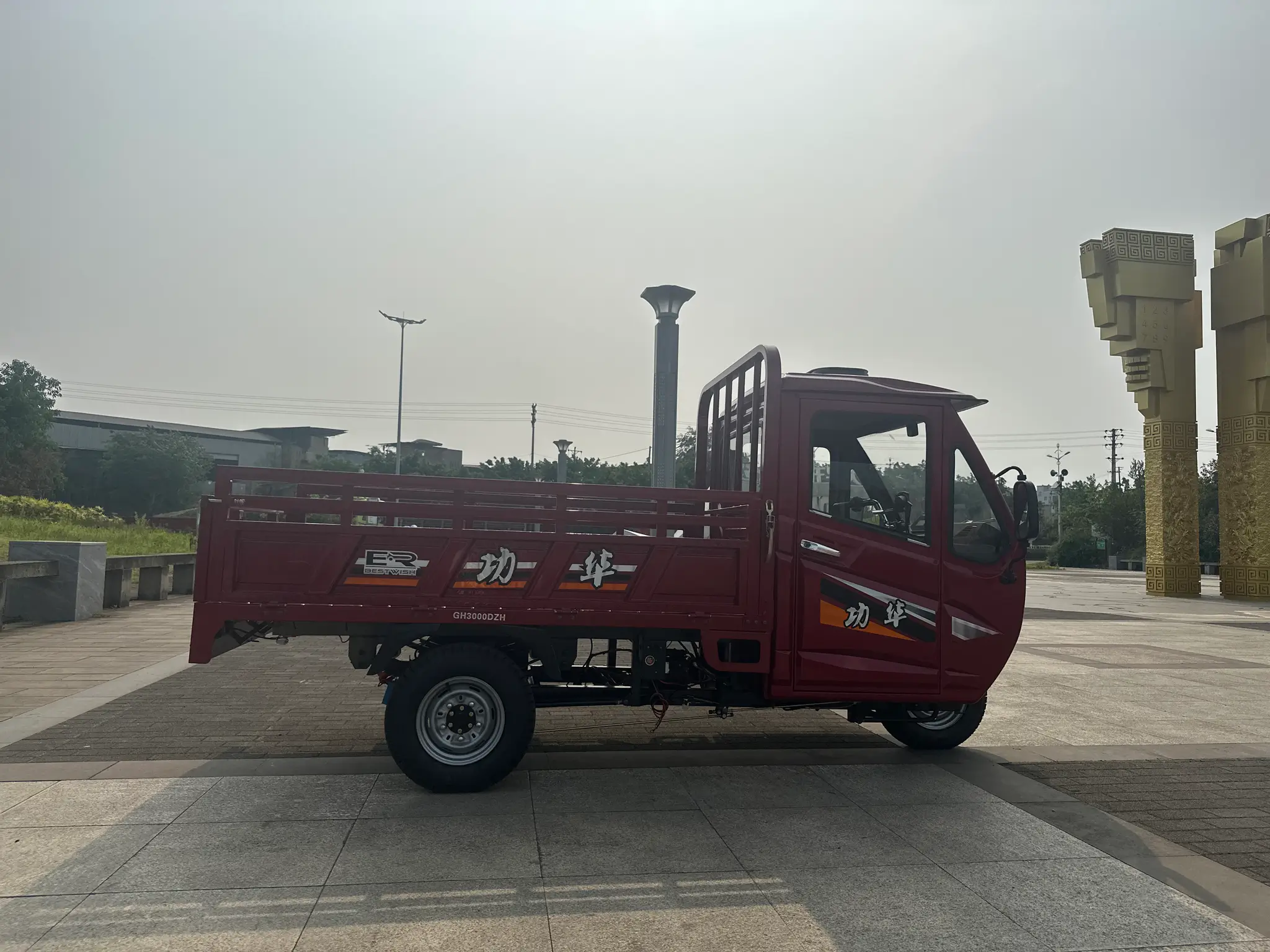

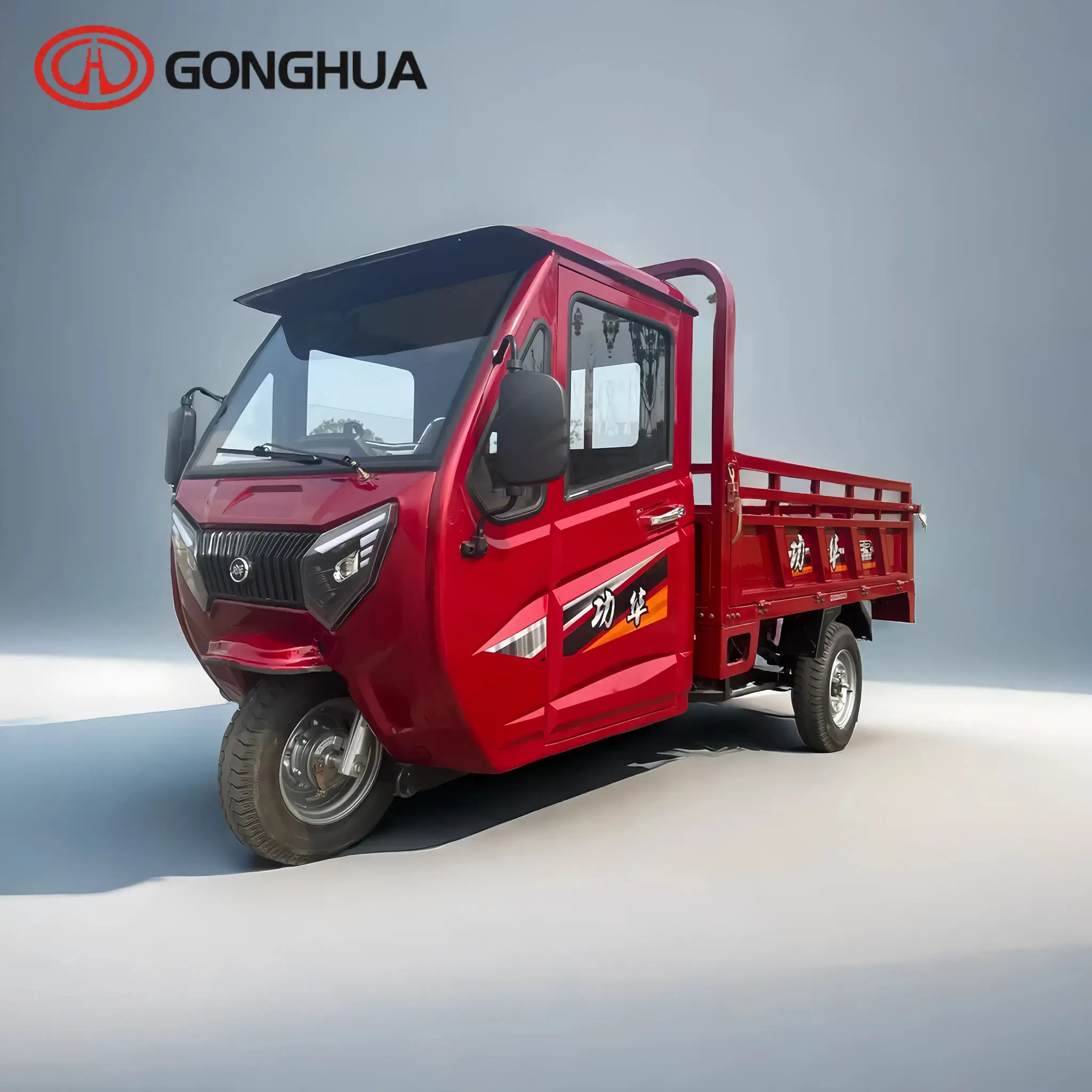

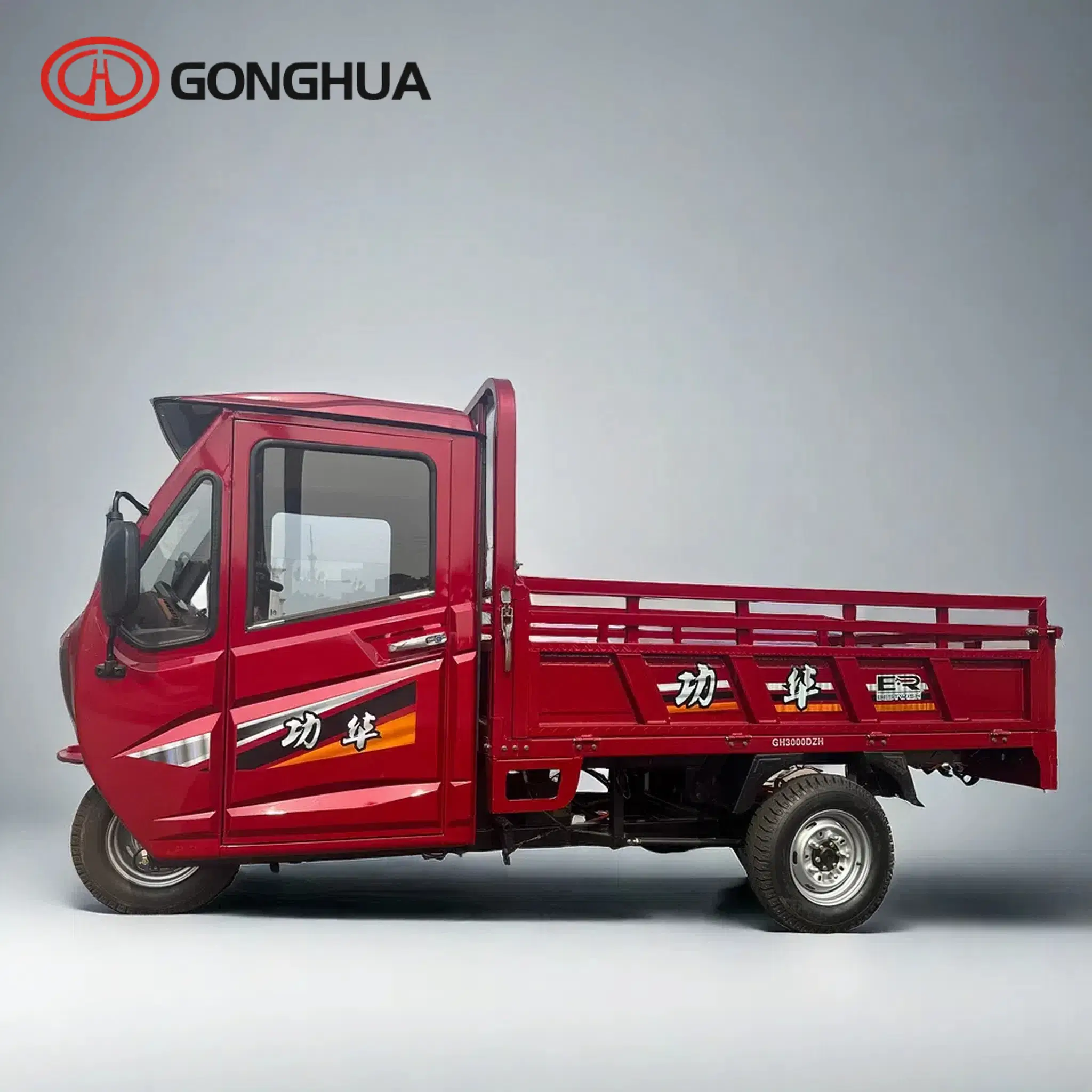

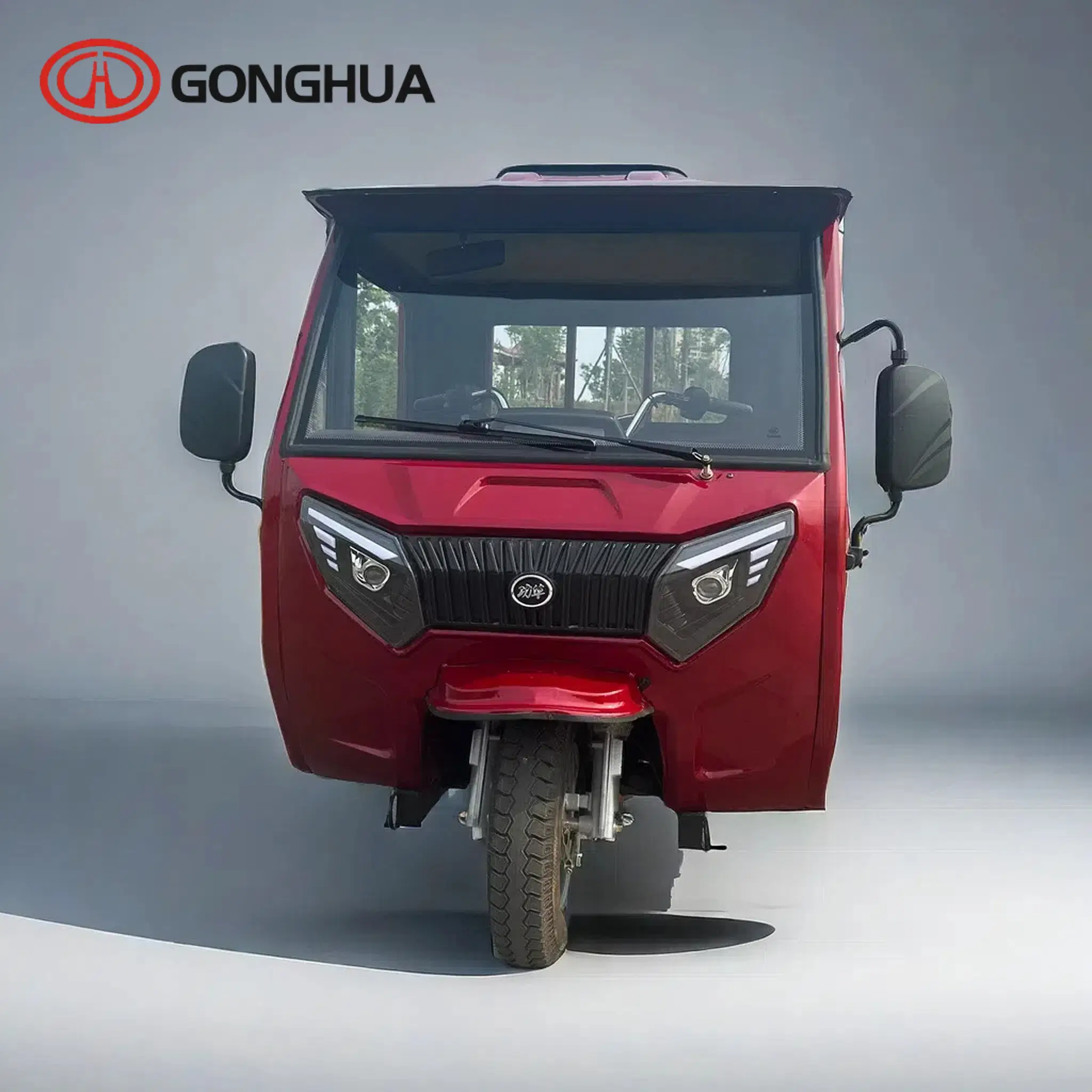

Semi-enclosed Cab Tricycle BP 2.2M
The Semi-Covered 2.2m Load King Cargo Tricycle showcases its exceptional qualities:

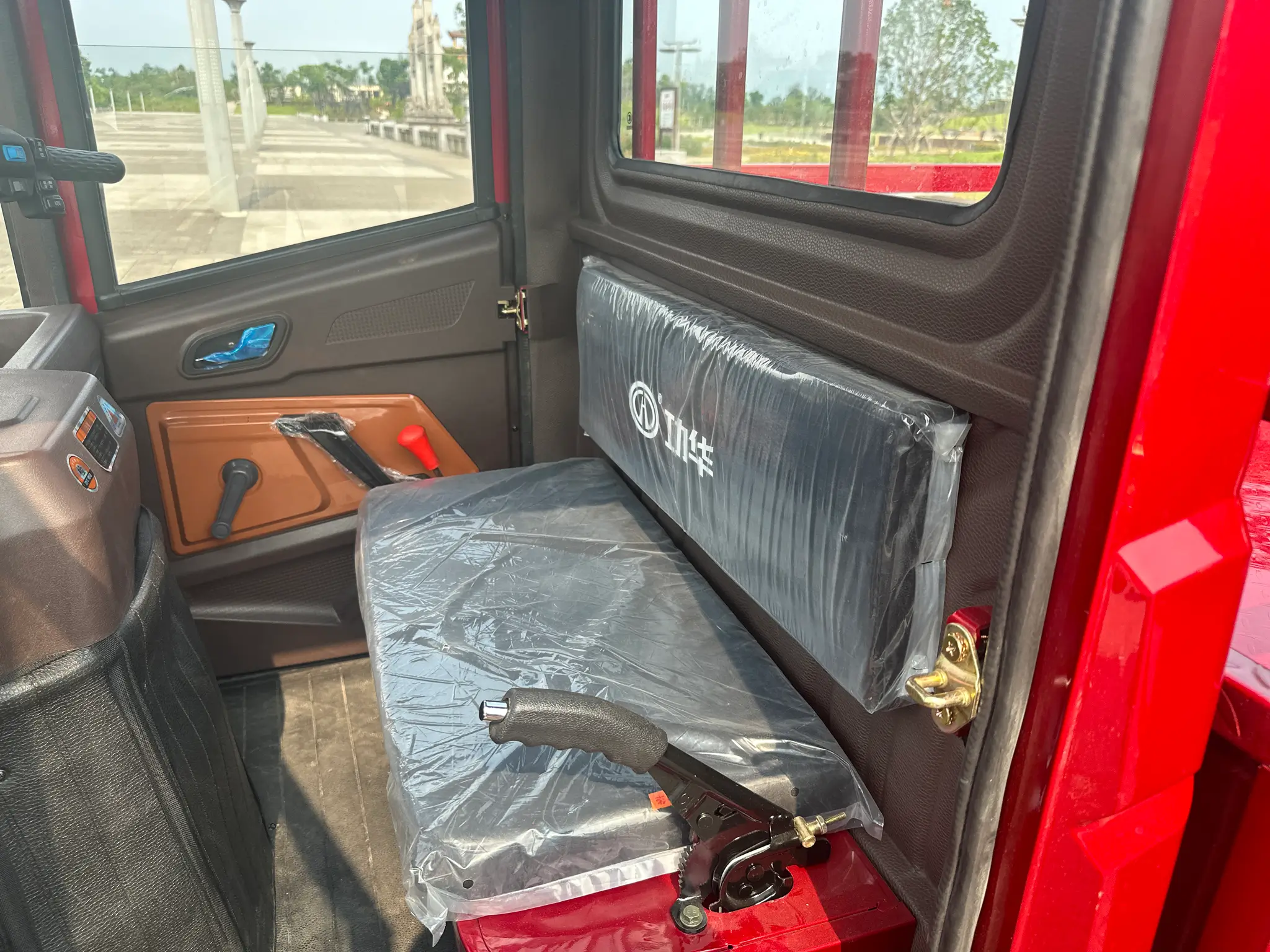

- Semi-Enclosed Cab – Providing a cozy and sheltered driving environment, safeguarding against adverse weather.
- Ultra-Durable Construction – Boasting a robust steel plate door core that’s virtually indestructible, coupled with high-quality materials and robotically-welded framework, ensuring superior quality and longevity.
- Advanced Smart Controller – Equipped to manage steep descents with ease, enhancing safety and control.

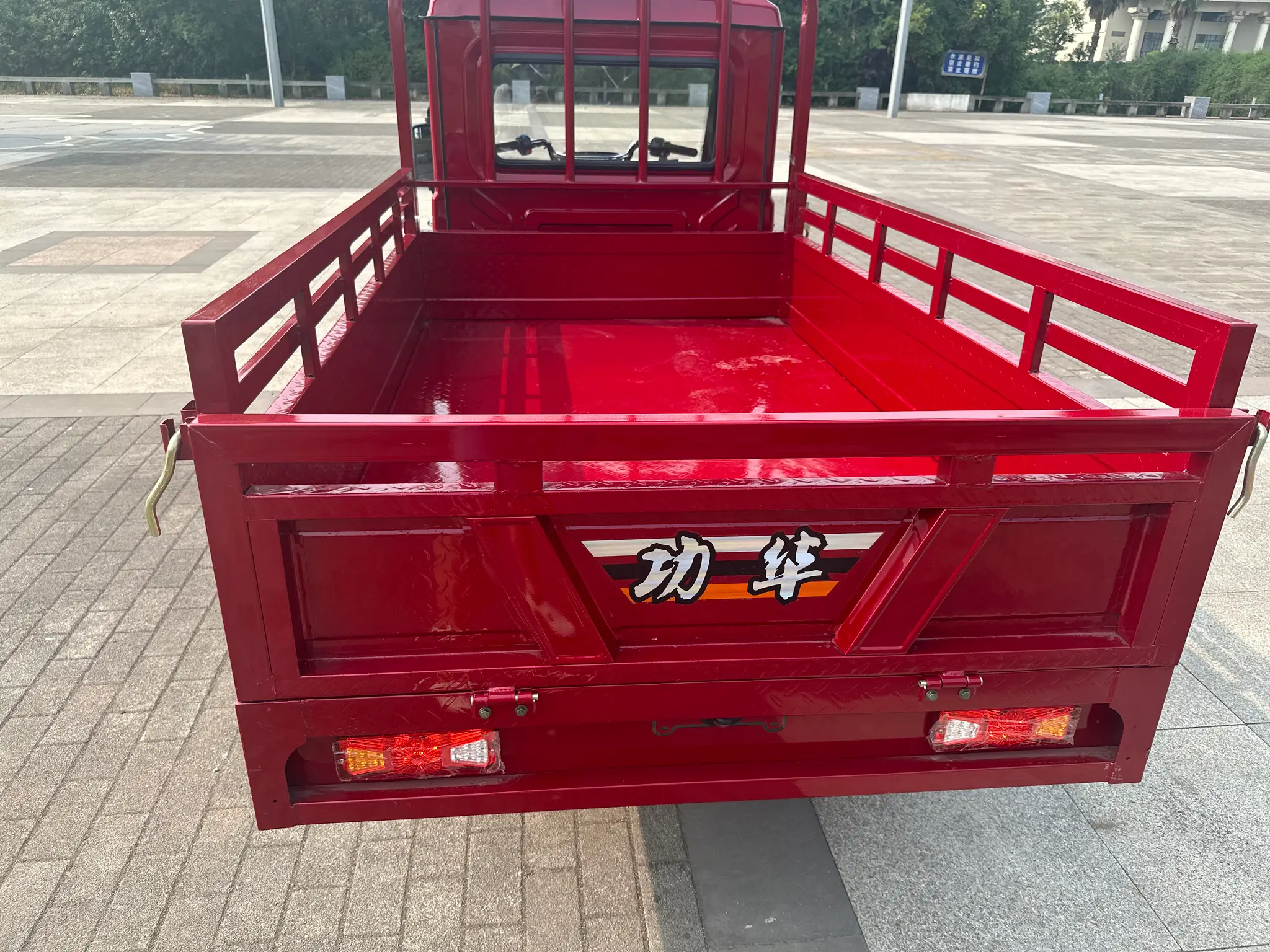

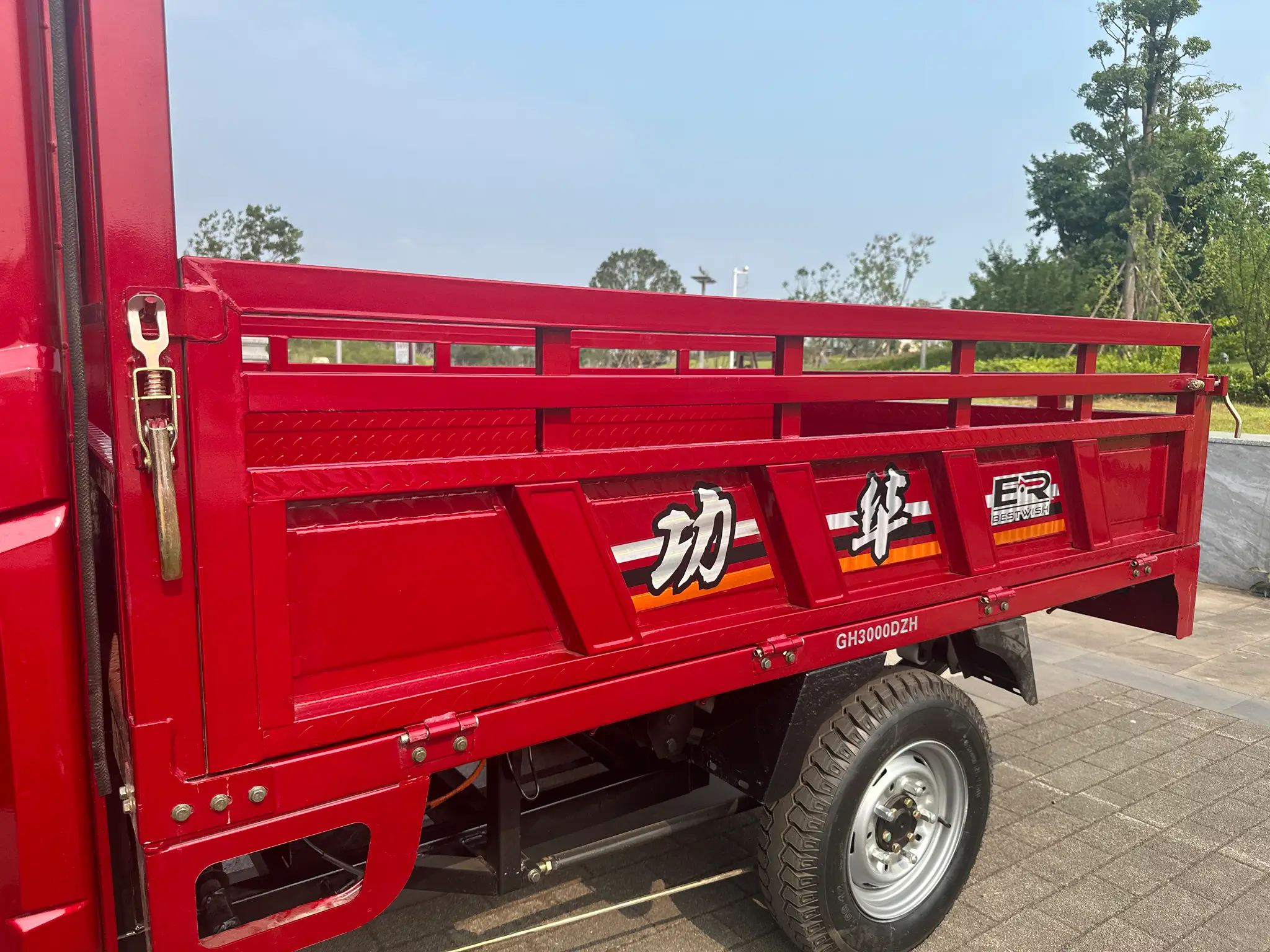

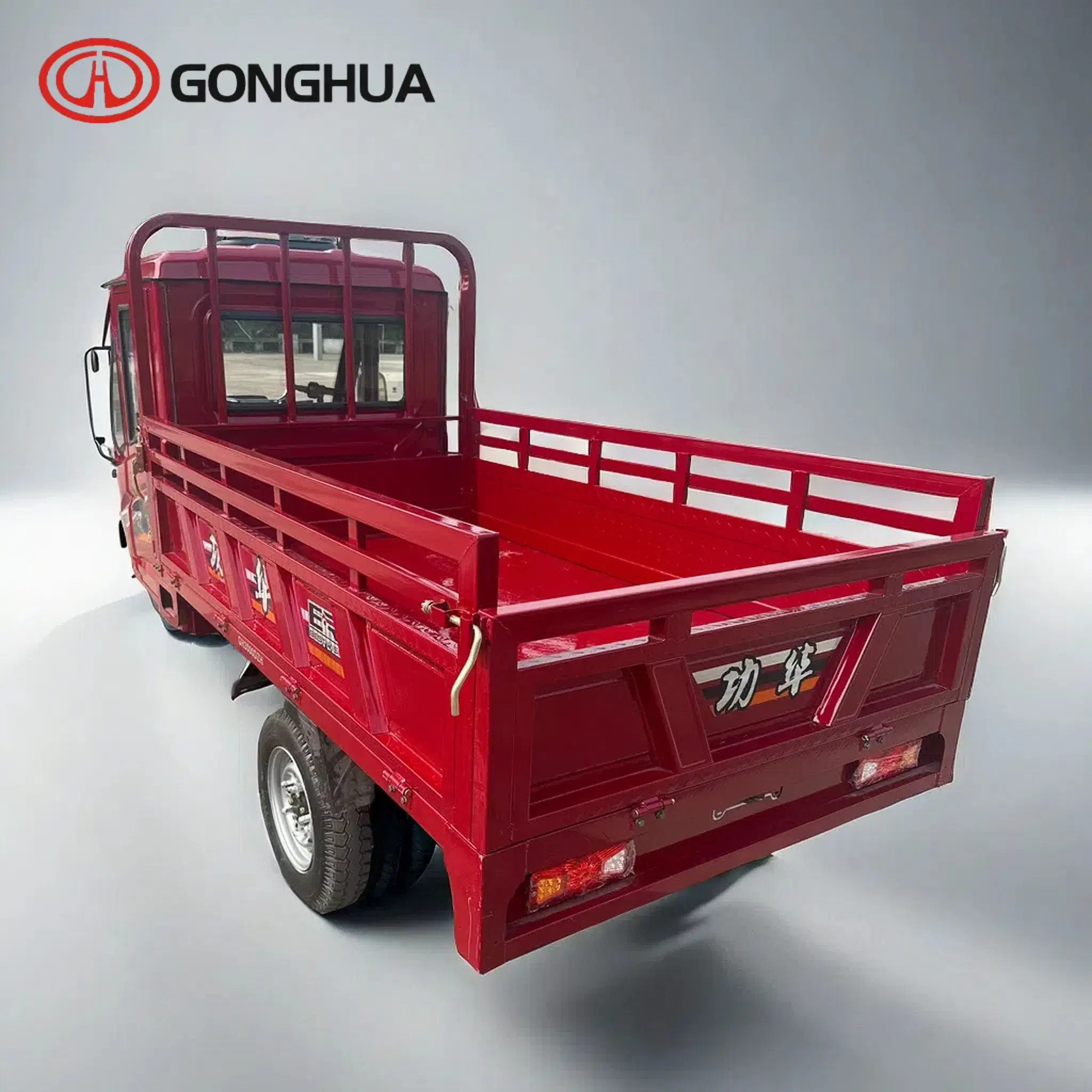

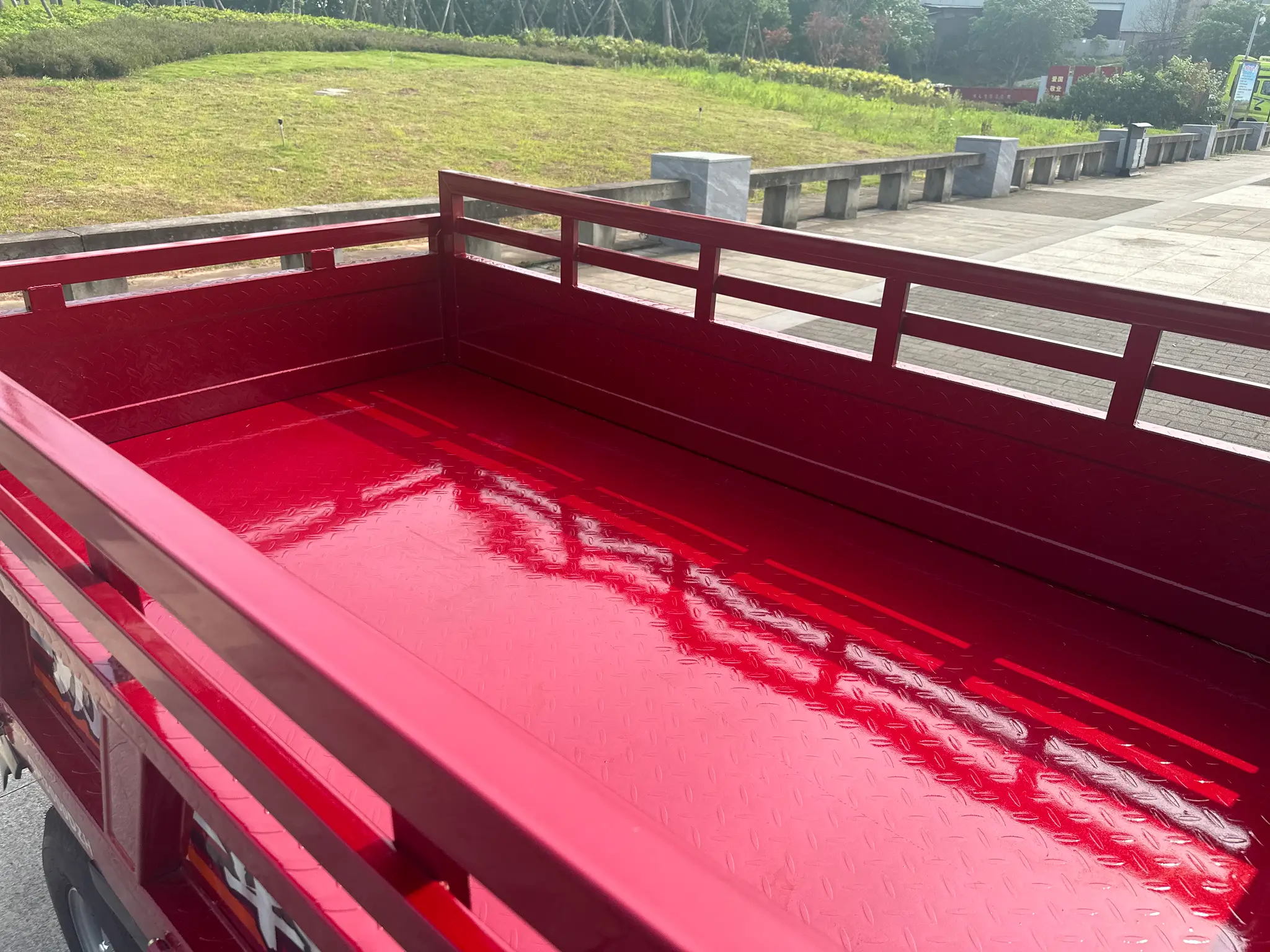

- Reinforced Side Doors & Oversized Cargo Box – Featuring heightened and strengthened access points, the colossal 1.36m*2.2m cargo area rivals truck-like carrying capacity.

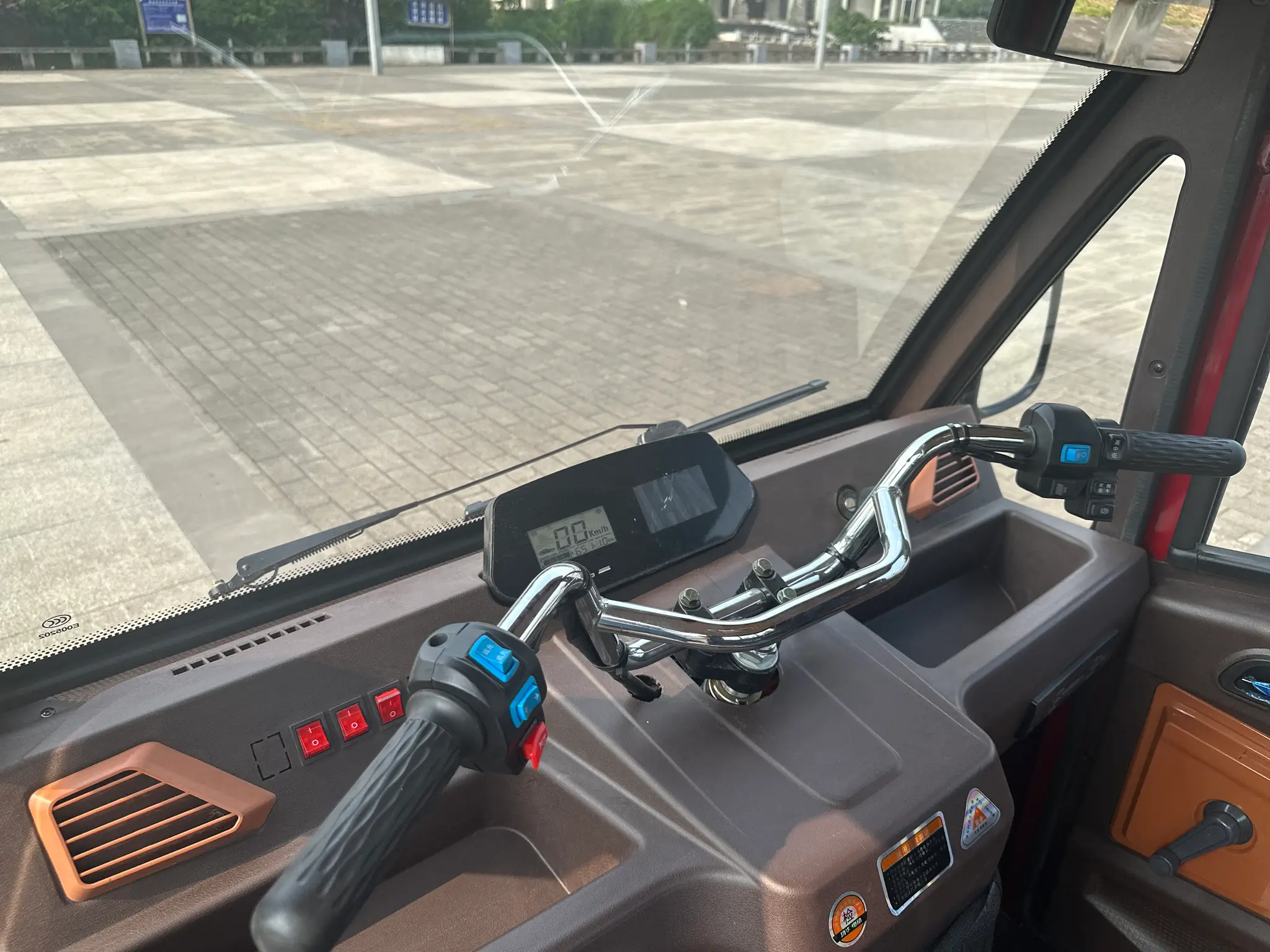

- Modern Amenities – Complete with Bluetooth multimedia player, cup holders, and water-spray wipers, elevating the driving experience with convenience and entertainment.
| Vehicle Model | GH3000DZH |
| Vehicle Name | Semi-enclosed Cab Tricycle BP 2.2M |
| Overall Dimensions（mm) | 3500*1450*1790 |
| PMSM Motor | 3000w |
| Battery | 72V 120AH Lead-acid |
| Contorller | 36G |
| Endurance mileage (km) | 120 |
| Min. ground clearance(mm) | ≥150 |
| Min. turning radius(mm) | ≤ 4.8 |
| Max. speed(km/h) | 38 |
| Max.climbing slope(%) | ≤ 25 |
| Economic speed range(km) | 32 |
| Front/rear tire specifications | 5.00-12 FR/RR: 5.00-12 |
| Rimtype | Front/Rear: Iron wheel |
| Rear axle structure | Fully floating rear bridge |
| Brake type | Front and rear drum brake |
| Parking brake | Handbrake |
| Front shock absorption | φ43 Outer spring Drum shock absorber |
| Rear shock absorption | 9 pieces steel plate |
| Curb weight(kg) | 288 |
| Gross vehicle weight(kg) | 1006 |
| Persons in cab(persons) | 200 |
| Wheel base(mm) | 2185 |
| Rear wheel track(mm) | 1160 |

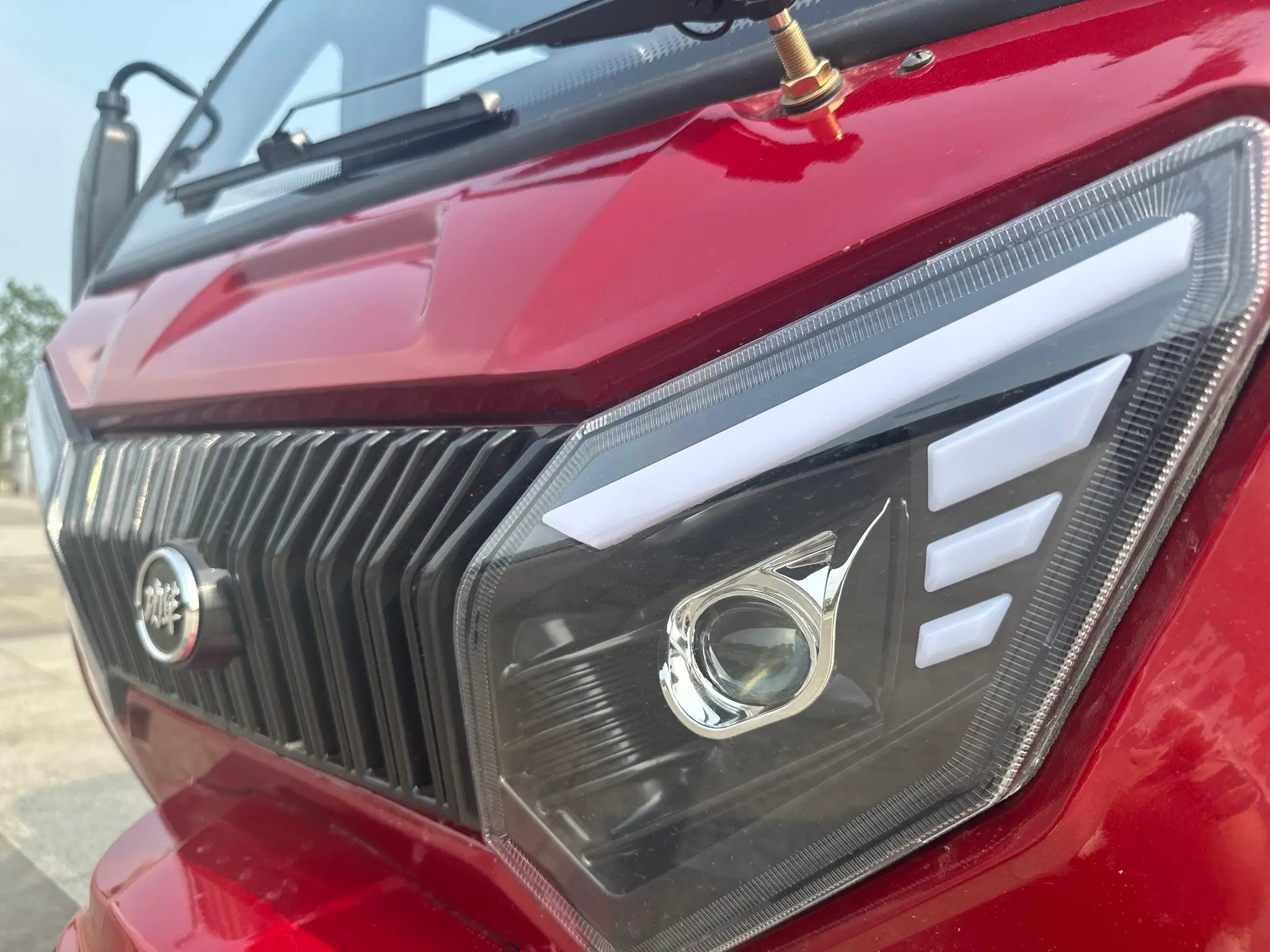

| Vehicle light | LED |
| Indicator panel | LCD |
