TUK TUK Electric Passenger Tricycle -2.6M
- CLASSIC DESIGN: Colorful exterior and open-air seating, creates an unforgettable experienc to any trip.
- SAFETY FRAME: Our tricycles are made of high-quality steel and pipe materials, and their welding process is completed by robots to ensure the solidity of the body.
- Eco-Friendly & Cost-Effective: Embracing sustainability, the TUKTUK is powered by efficient engines that minimize environmental impact. It also translates into cost savings.
- Compact & Versatile: Despite its charming appearance, the TUKTUK boasts remarkable versatility. Its compact size allows it to navigate narrow streets and crowded markets with ease.
| Vehicle Model | GH1500DZK-G |
| Vehicle Name | TUK TUK Electric Passenger Tricycle -2.6M |
| Overall Dimensions（mm) | 2835*1140*1735 |
| PMSM Motor | 1000-1500W |
| Battery | 60V 45AH Lead-acid |
| Contorller | 18-30G |
| Endurance mileage (km) | 50-80 |
| Min. ground clearance(mm) | |
| Min. turning radius(mm) | |
| Max. speed(km/h) | 38 |
| Max.climbing slope(%) | |
| Economic speed range(km) | 32 |

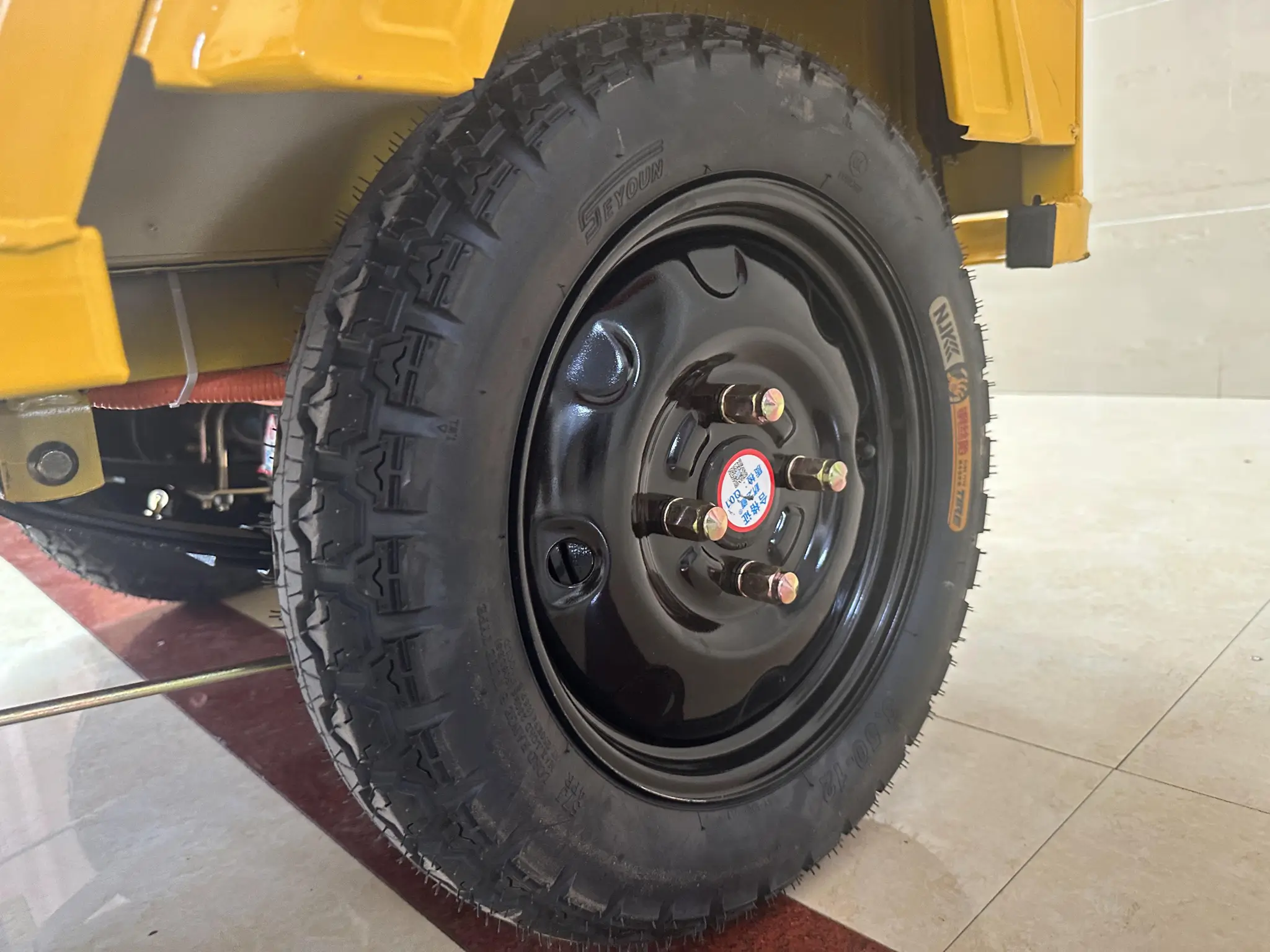

| Front/rear tire specifications | 3.50-12 FR/RR: 3.00-12 |
| Rimtype | Front/Rear: Iron wheel |
| Rear axle structure | Conical integrated (semi floating) rear axle |
| Brake type | Front and rear drum brake |
| Parking brake | Handbrake |
| Front shock absorption | φ37 Outer spring Drum shock absorber |
| Rear shock absorption | 5 pieces steel plate |
| Curb weight(kg) | 278 |
| Gross vehicle weight(kg) | 535 |
| Persons in cab(persons) | 3人 |
| Wheel base(mm) | 2158 |
| Rear wheel track(mm) | 937 |
| Vehicle light | LED |
| Indicator panel | LCD |
