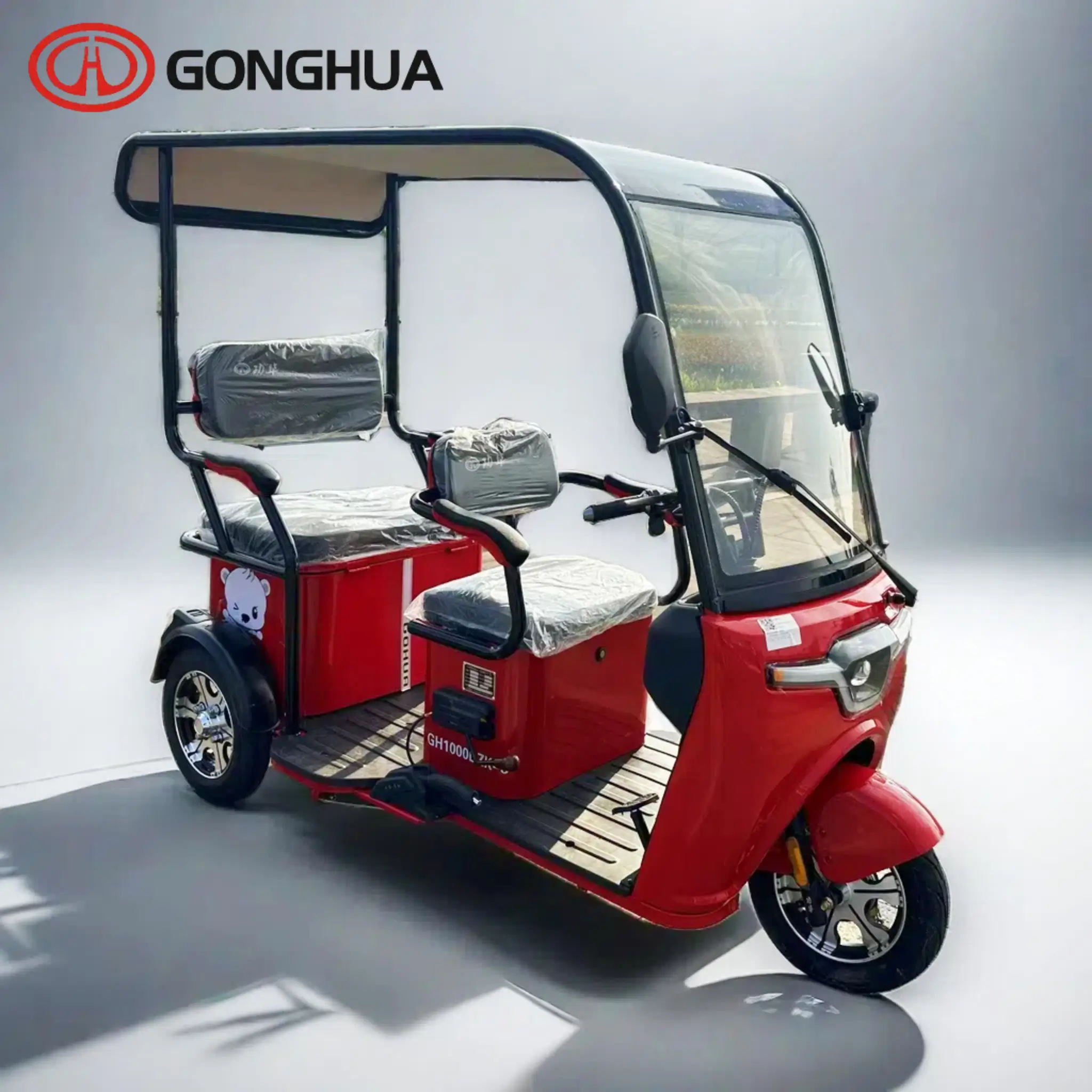

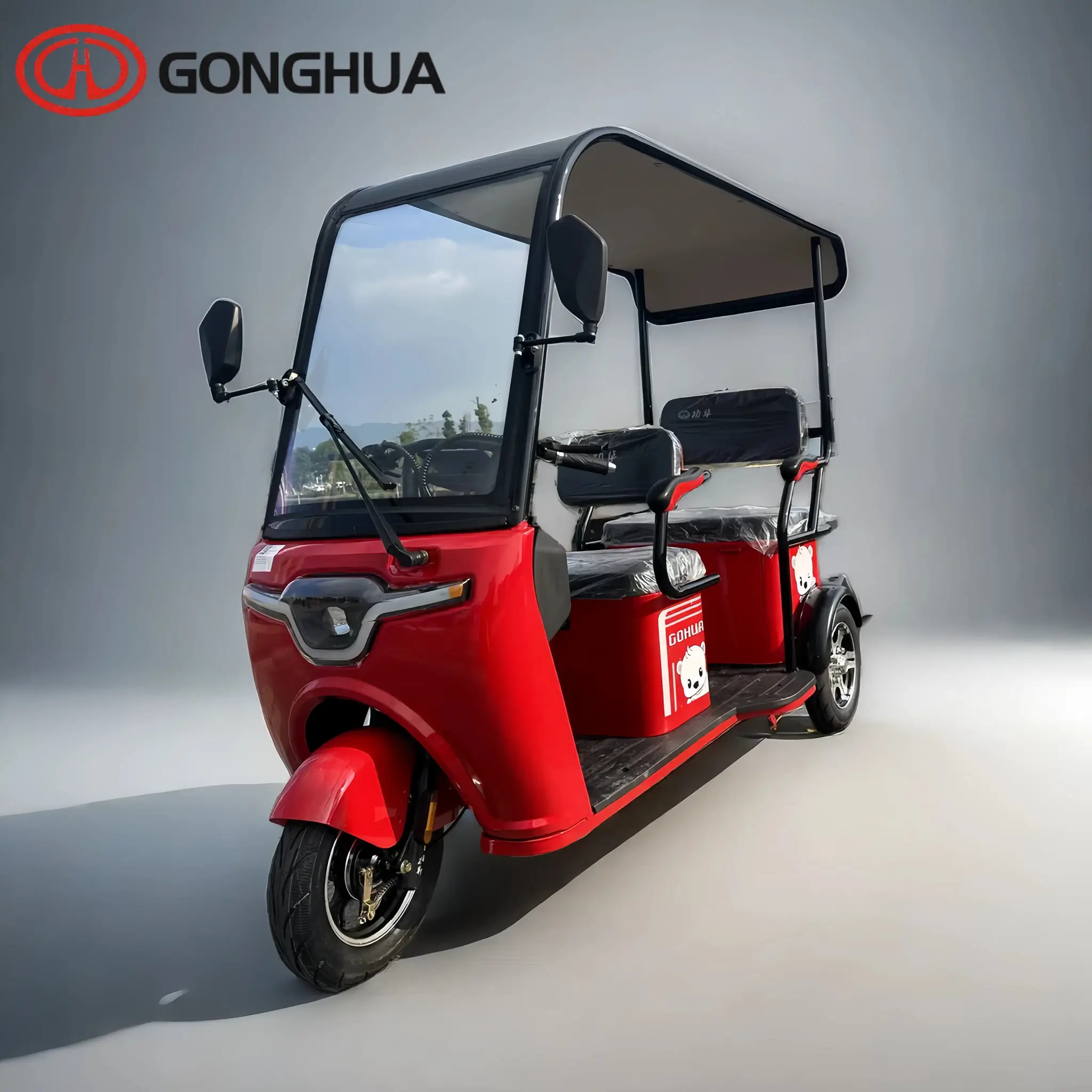

Passenger Tricycle –DS
- Comfortable & Spacious Seating: The cushioned seats provide ample support and space, ensuring a relaxing and fatigue-free ride, even over long distances.
- Convenient Under-Seat Storage: spacious under-seat storage compartment
- Driving an electric leisure tricycle is an effortless joy. It offers a smooth, quiet ride
- Protective canopy, which provides an extra layer of shelter from sun, rain, or wind
| Vehicle Model | GH1000DZK-3 |
| Vehicle Name | Passenger Tricycle –DS |
| Overall Dimensions（mm) | 2090*900*1635 |
| PMSM Motor | 800-1000W |
| Battery | 60V 32AH Lead-acid |
| Contorller | 15-18G |
| Endurance mileage (km) | 40-62 |
| Min. ground clearance(mm) | ≥100 |
| Min. turning radius(mm) | ≤ 3 |
| Max. speed(km/h) | 32 |
| Max.climbing slope(%) | ≤ 15 |
| Economic speed range(km) | 28 |
| Front/rear tire specifications | 3.00-10 FR/RR: 3.00-10 |
| Rimtype | Front/Rear: Iron wheel |
| Rear axle structure | Conical integrated rear axle |
| Brake type | Front and rear drum brake |
| Parking brake | Handbrake |
| Front shock absorption | φ31 Inner spring Drum shock absorber |
| Rear shock absorption | Rear hydraulic shock absorption |
| Curb weight(kg) | 137 |
| Gross vehicle weight(kg) | 312 |
| Persons in cab(persons) | 2 |
| Wheel base(mm) | 1575 |
| Rear wheel track(mm) | 770 |
| Vehicle light | LED |

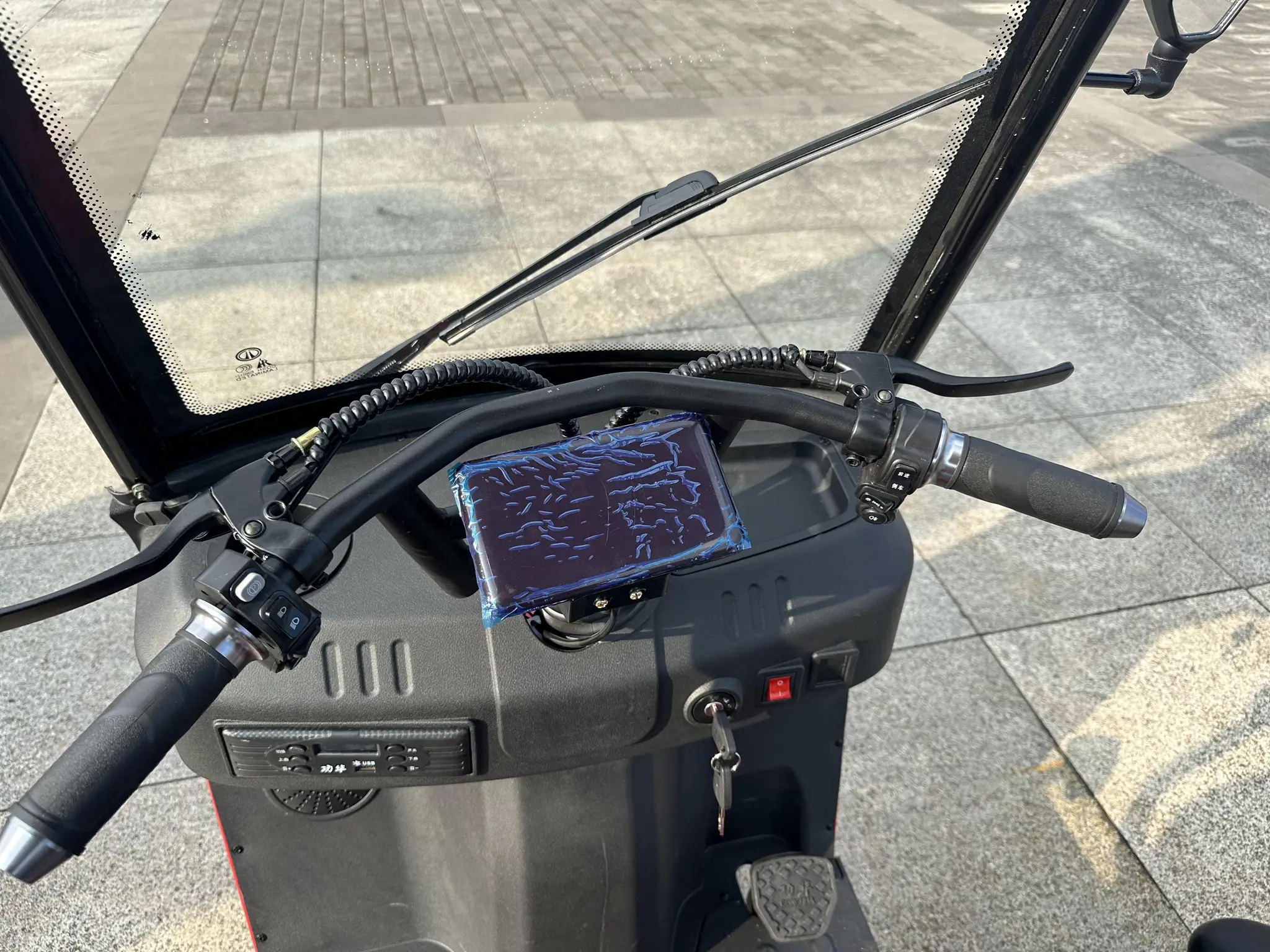

| Indicator panel | LCD |
