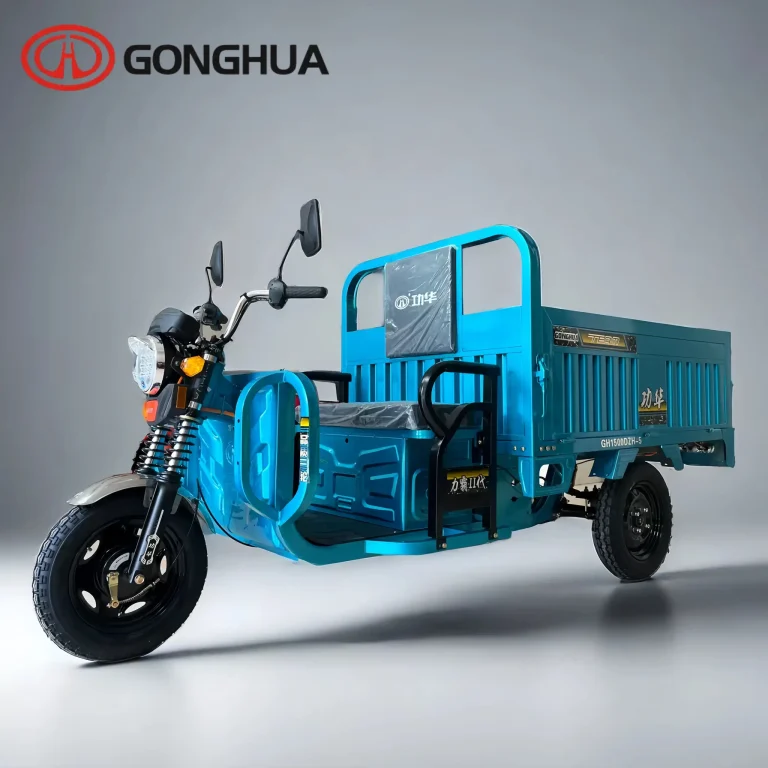

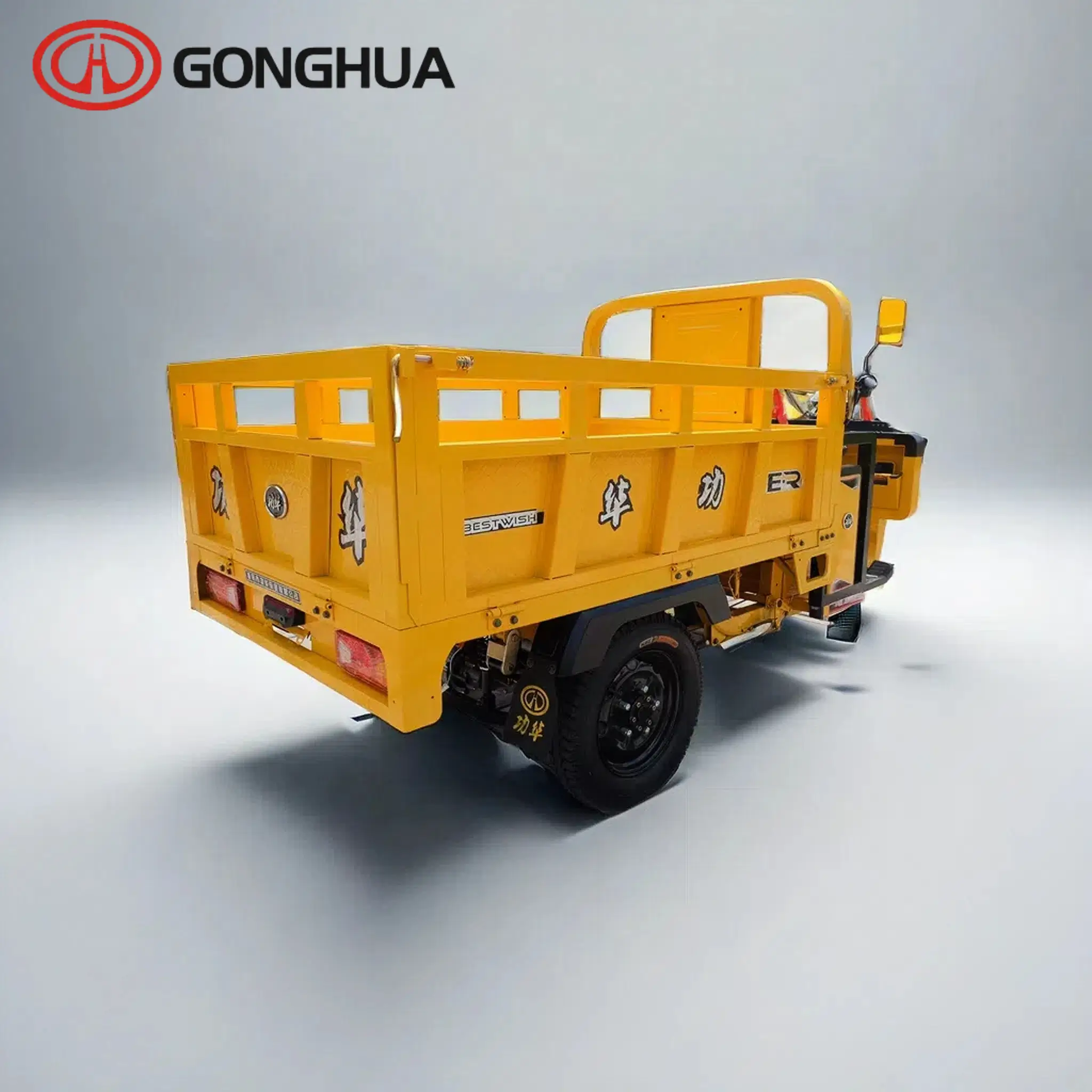

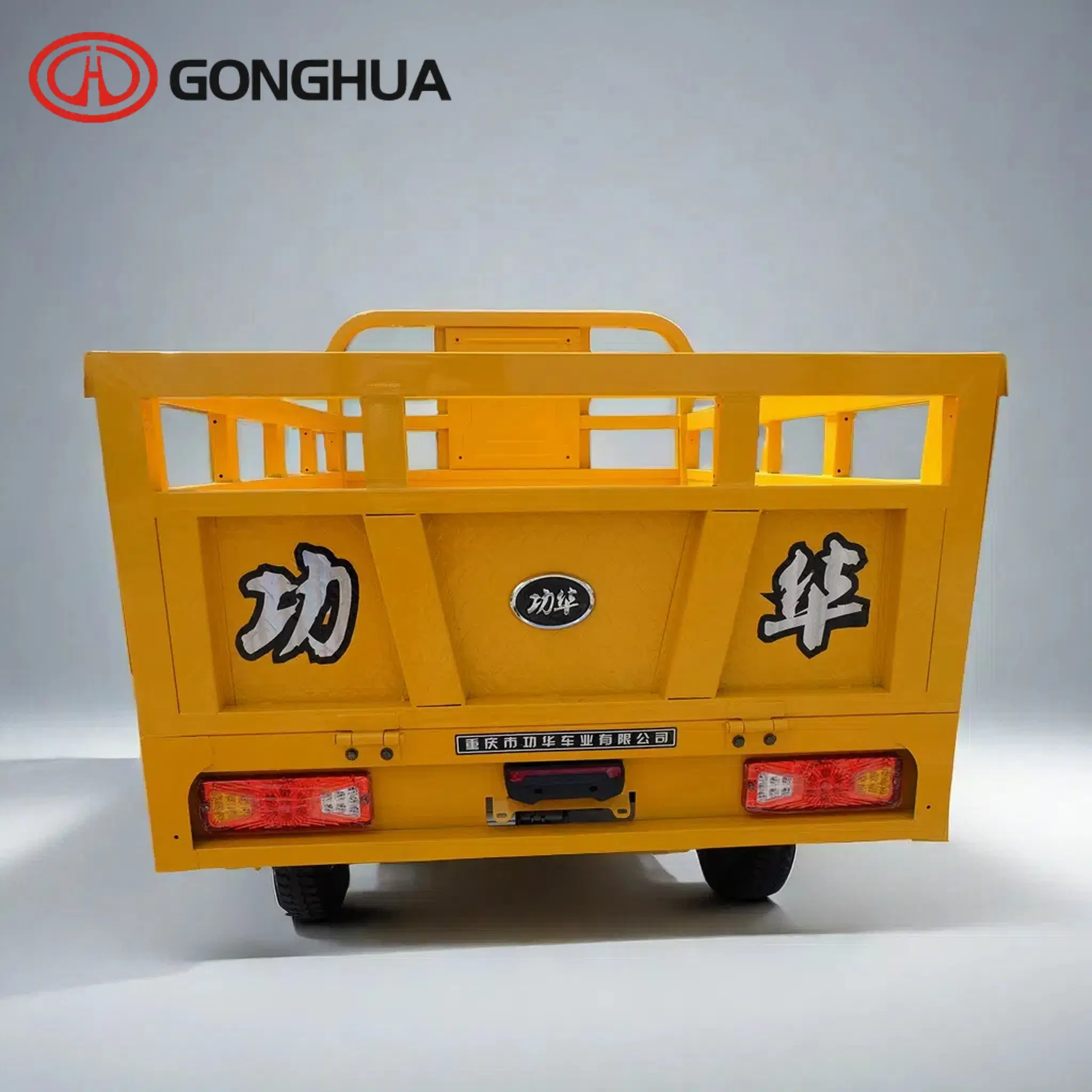

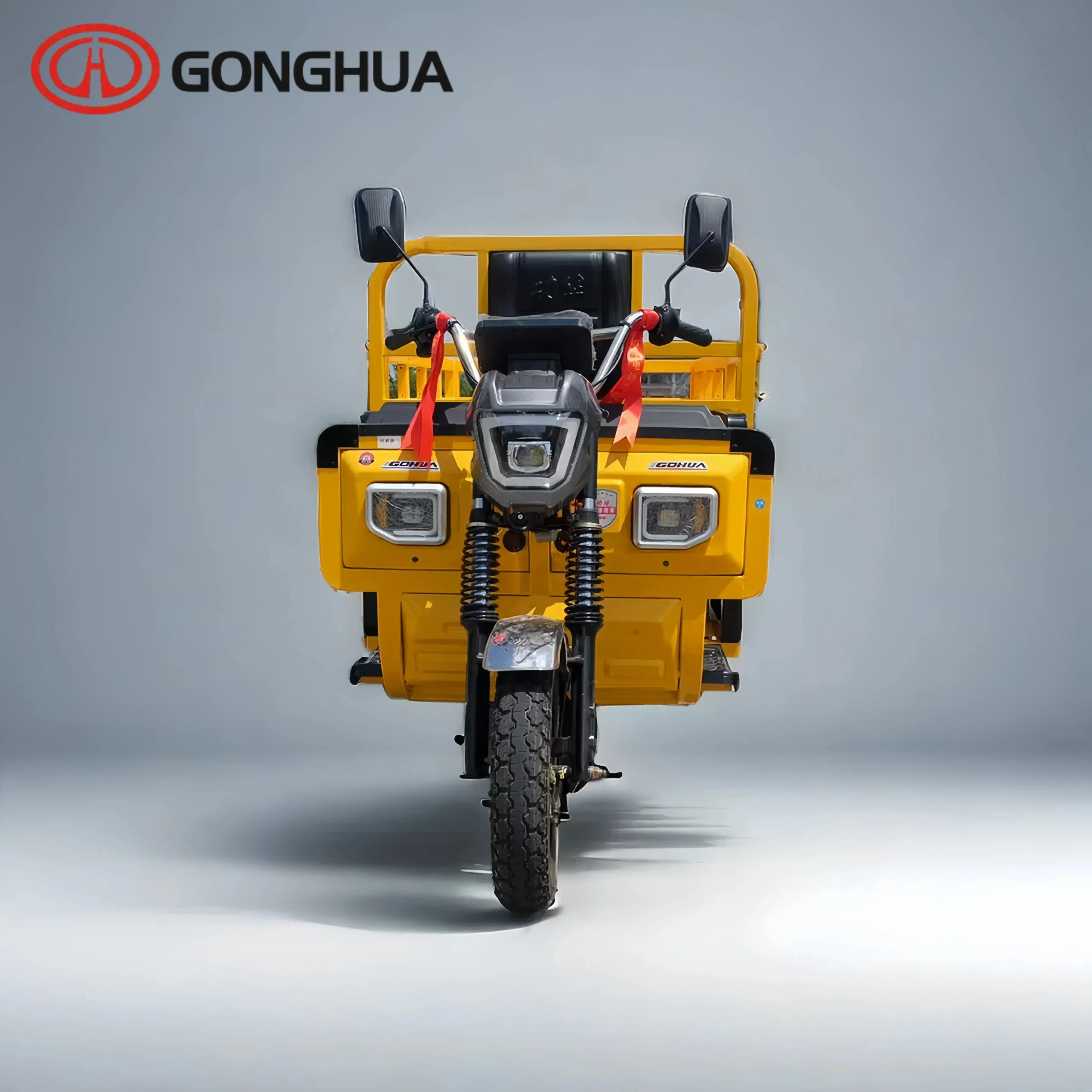

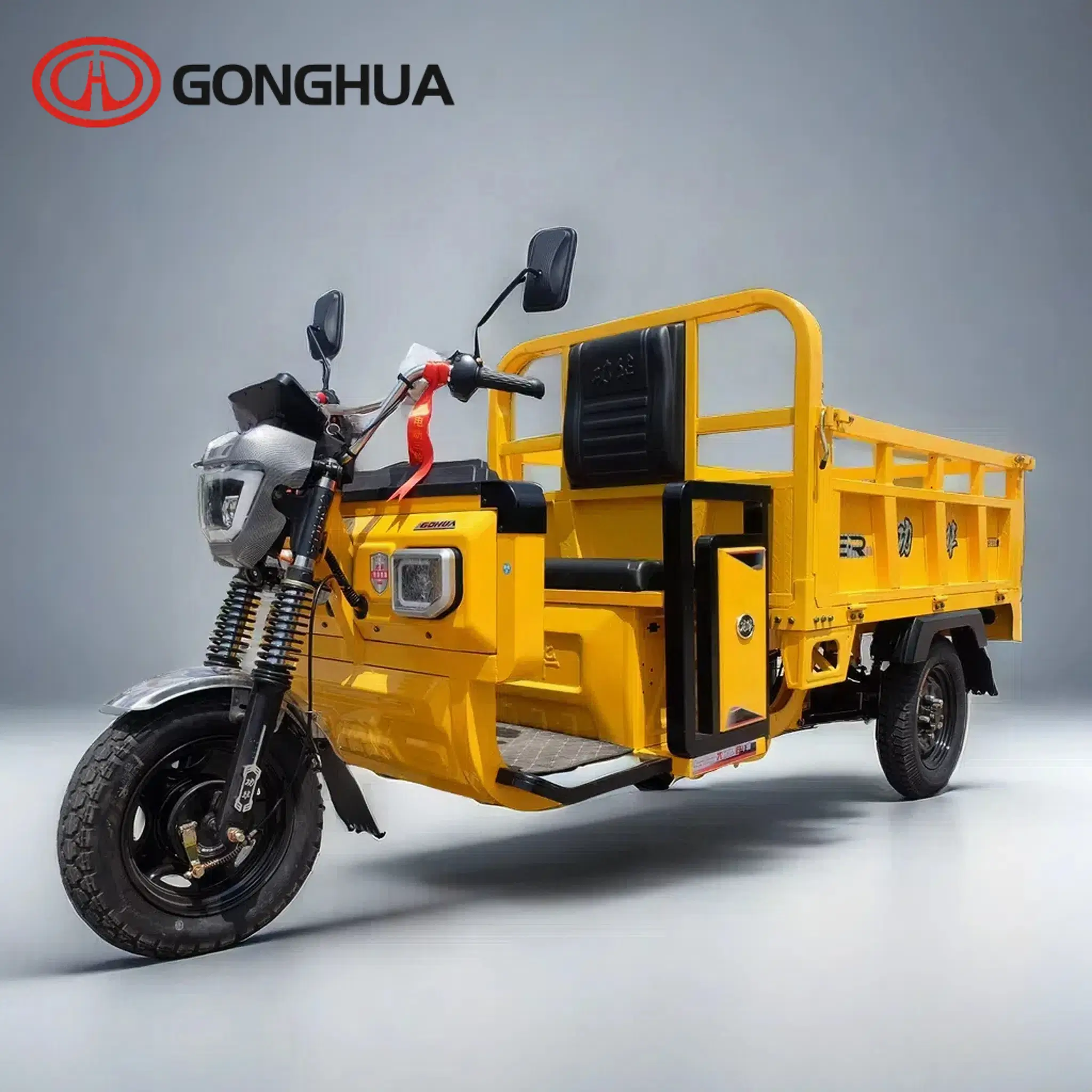

Electric Cargo Tricycle-BD 1.6M

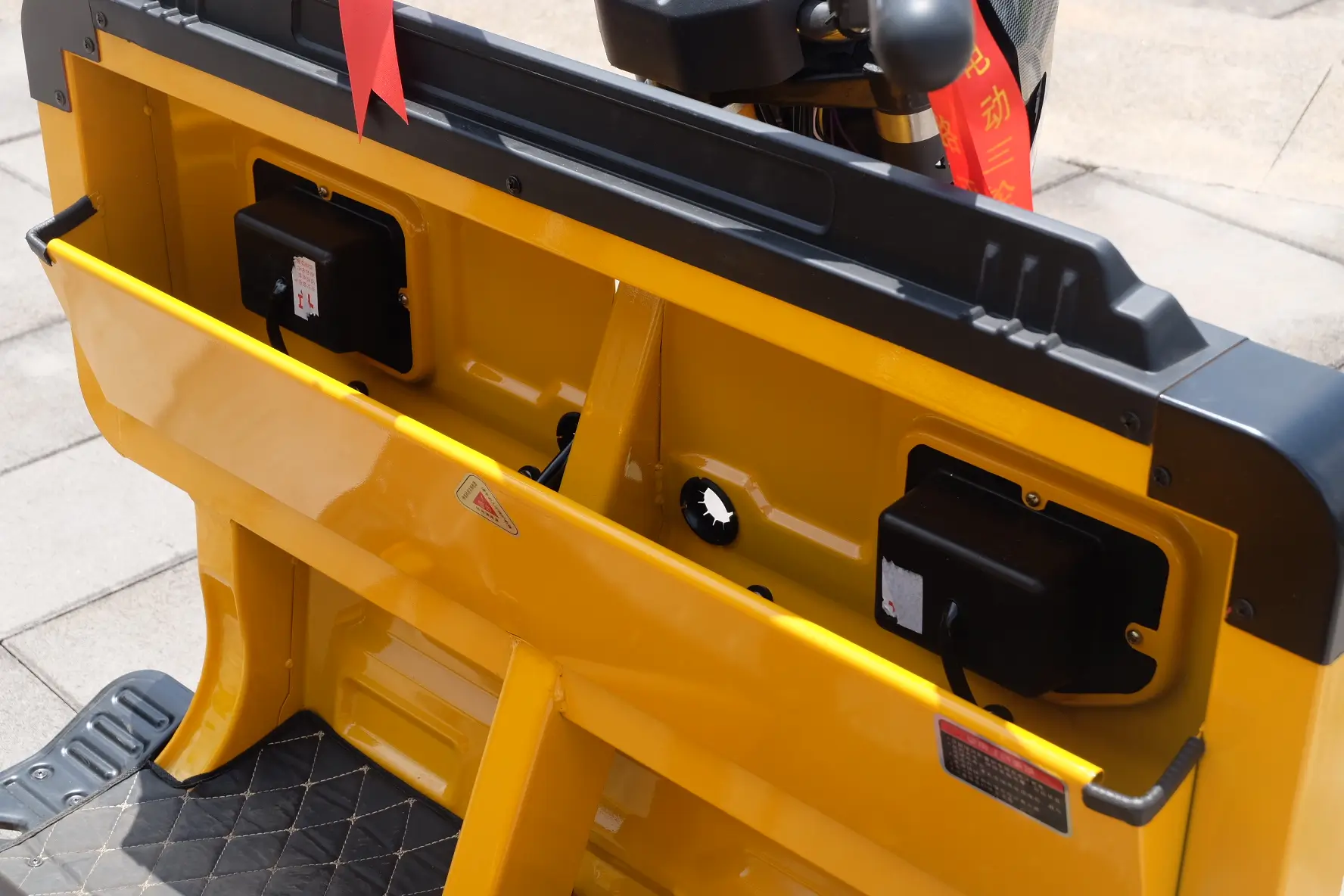

- Sturdy Steel Base & Reinforced Doors: Features steel floorboards and door cores for exceptional durability and load-bearing capacity, ensuring long-lasting performance and worry-free transportation.
- Enhanced Safety with Thickened Bumper & Anti-Collision Beam: Equipped with a thicker bumper and a robust anti-collision beam, it provides added protection and safety during transportation.
- Smart Controller for Steep Slope Descent: Incorporates an intelligent controller that enables smooth and controlled descent on steep slopes, enhancing driving safety.
- Elevated Cargo Box Side Doors & Spacious Interior: Boasts side doors raised to 47cm and a cargo box measuring 1.1m*1.6m, offering ample space and easy access for various cargo types.
| Vehicle Model | GH1500DZH-6 |
| Vehicle Name | Electric Cargo Tricycle-BD 1.6M |
| Overall Dimensions（mm) | 3070*1170*1400 |
| PMSM Motor | 1800-2200W |
| Battery | 60V 45AH Lead-acid |
| Contorller | 18-24G |
| Endurance mileage (km) | 60-80 |
| Min. ground clearance(mm) | ≥150 |
| Min. turning radius(mm) | ≤ 4 |
| Max. speed(km/h) | 38 |
| Max.climbing slope(%) | ≤ 20 |
| Economic speed range(km) | 32 |

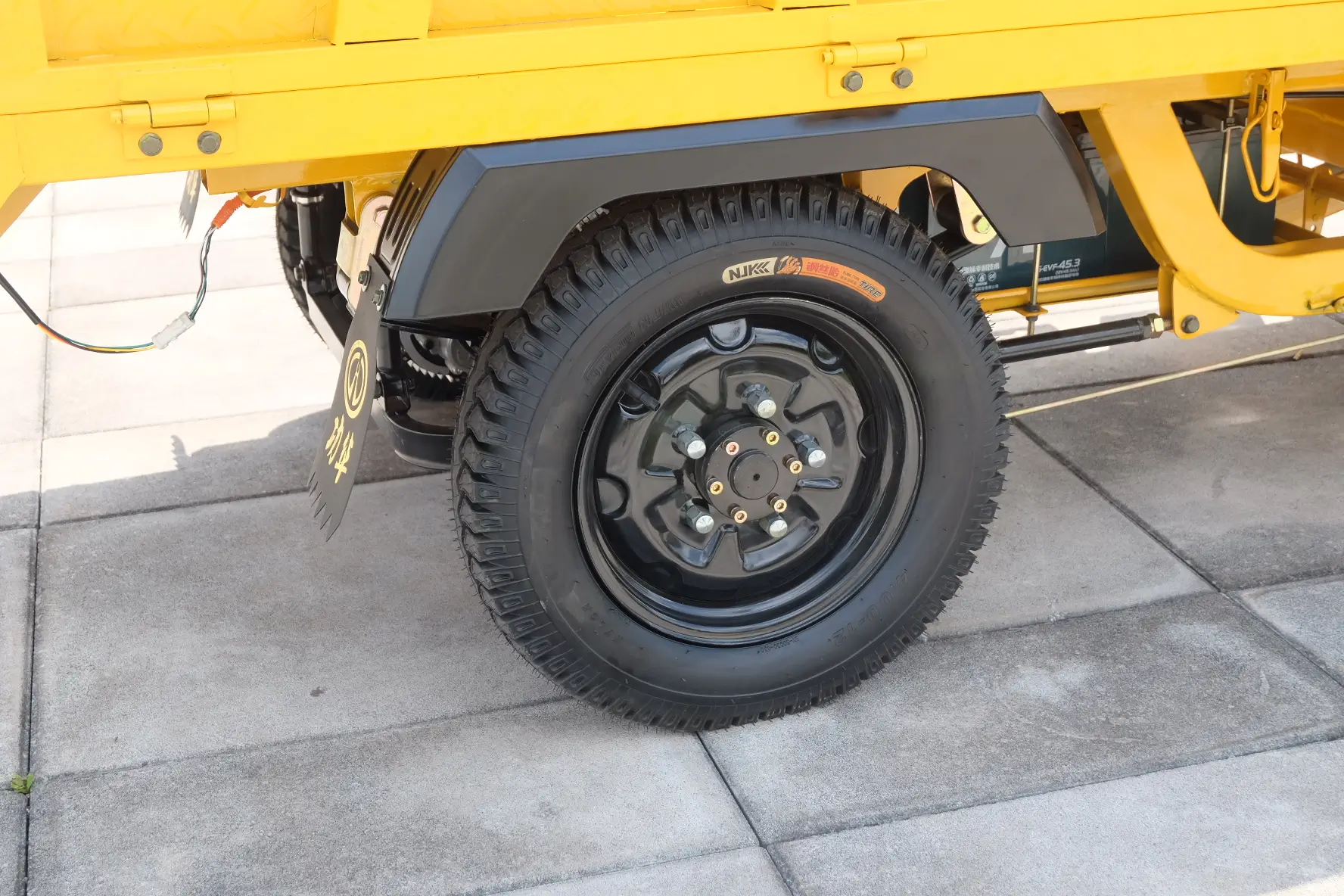

| Front/rear tire specifications | 3.50-12/4.00-12 FR: 3.75-12/RR: 4.00-12 |
| Rimtype | Front/Rear: Iron wheel |
| Rear axle structure | Conical integrated rear axle |
| Brake type | 160 Front and rear drum brake |
| Parking brake | Handbrake |
| Front shock absorption | φ37 Outer spring Drum shock absorber |
| Rear shock absorption | 7 pieces steel plate |
| Curb weight(kg) | 244 |
| Gross vehicle weight(kg) | 481 |
| Persons in cab(persons) | 175 |
| Wheel base(mm) | 1960 |
| Rear wheel track(mm) | 937 |
| Vehicle light | LED |
| Indicator panel | LCD |
